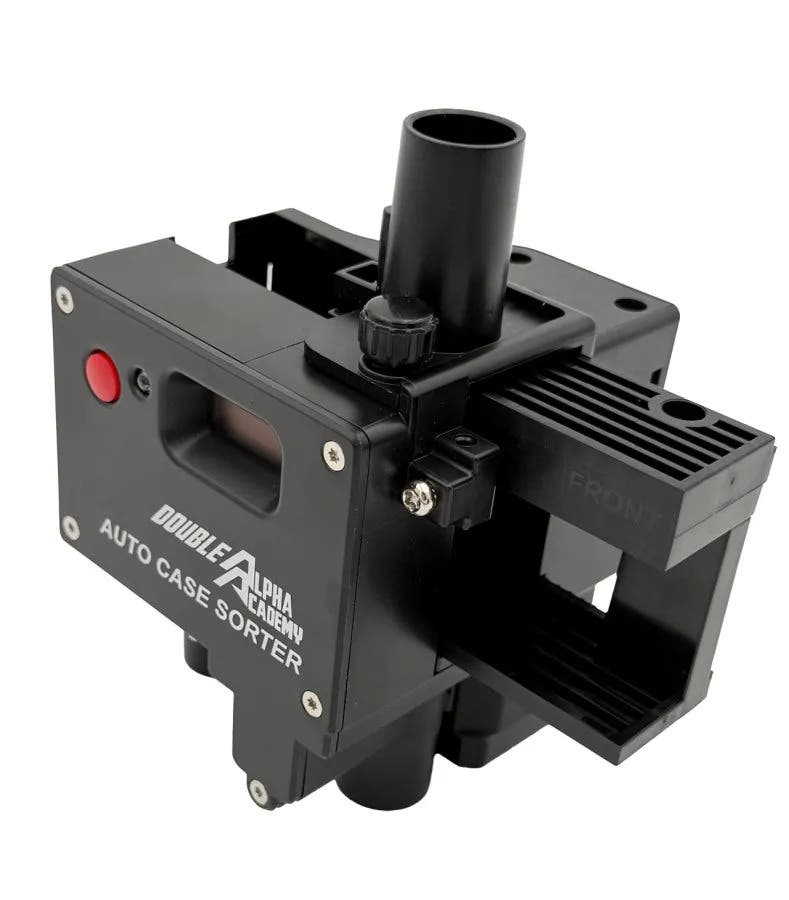

Double Alpha Academy Auto Case Sorter

Eliminate Reloading Hassles

Misfed cases can disrupt your workflow, forcing you to clear the shell plate, often requiring a full reset. This issue is even more problematic with automated presses, where pre-sorting cases is typically necessary. The DAA Auto Case Sorter eliminates these problems, keeping your reloading process smooth and efficient.

Fast, Compact, and Reliable

• High-speed operation: Handles up to 3,800 rounds per hour, fast enough to keep up with any reloading process.

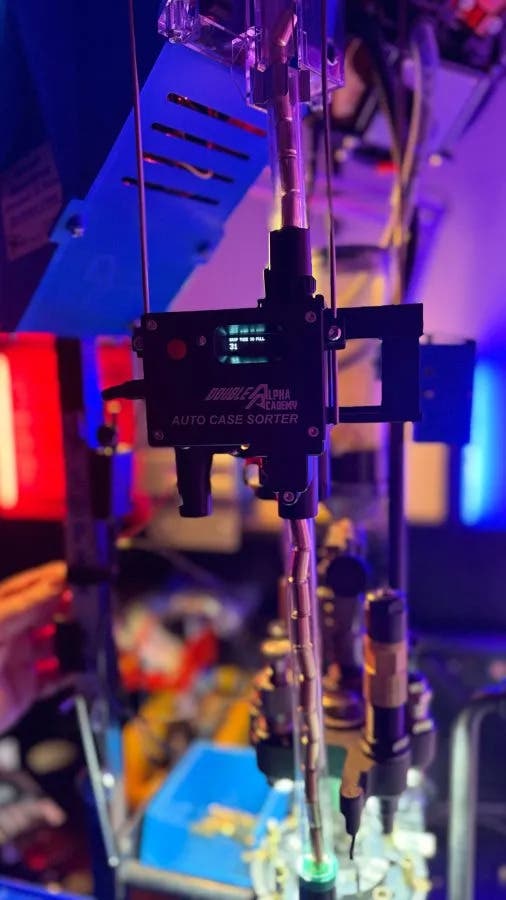

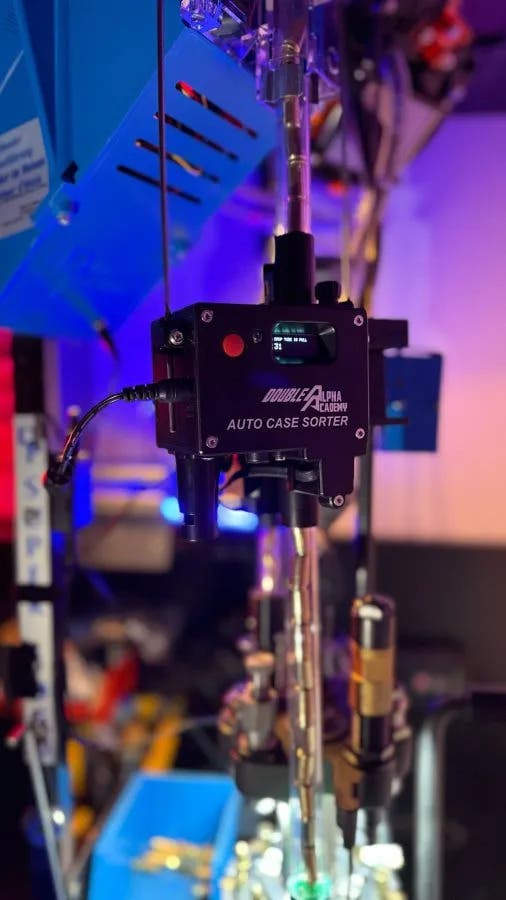

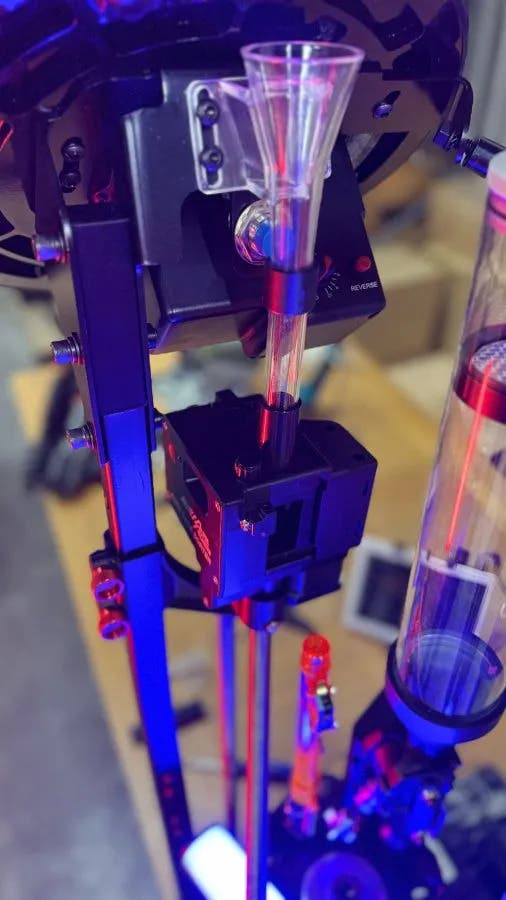

• Compact and lightweight: Easily mounts under your case feeder without adding bulk.
• Automatic case rejection: Detects and ejects incorrect or upside-down cases before they reach the shell plate.

Easy Calibration & Operation

The DAA Auto Case Sorter supports all pistol calibers from .380 to .45 (excluding .357/.44 Mag).

Setting it up for each new caliber is simple:

1. Manually sort five correctly oriented cases of your chosen caliber.
2. Drop them into the sorter.
3. Hold the red button for three seconds until the light indicates programming mode.
4. The sorter measures, averages, and sets the baseline for that caliber. From then on, any different (or inverted) case is ejected.
5. To switch calibers, repeat the steps above.

User Manual

Download the Auto Case Sorter user manual here: Download-English
