Support & Resources

CP2000Resources

Manuals, setup and maintenance videos, caliber conversion charts and the parts that fit this machine, all in one place.

  • 17 Videos
  • 1 Documents
  • 1 Conversion Kits
Manuals & GuidesVideo LibraryCaliber ConversionParts & Accessories

View The CP2000

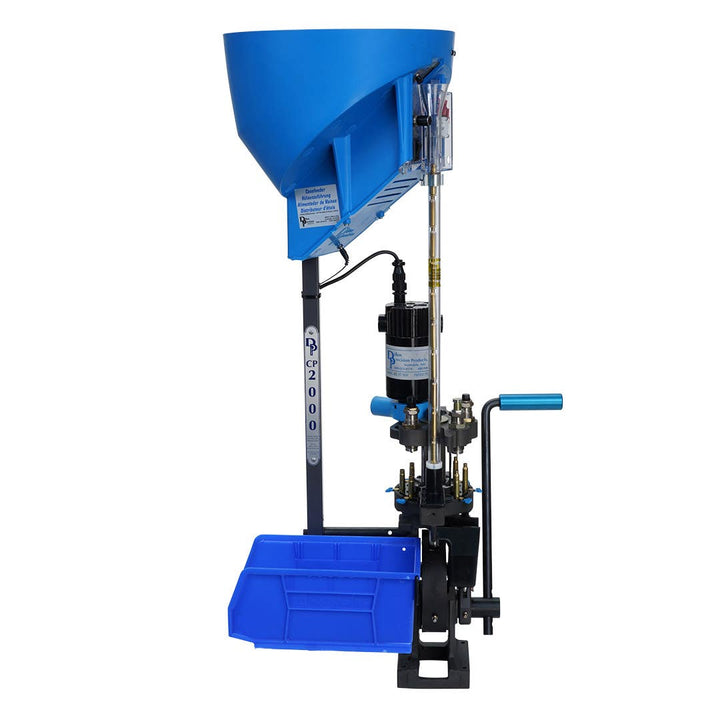

CP2000 | Base Assy

Manuals & Guides

Download the owner's manual, quick start guide and reference sheets for this machine.

Owner's Manual1

Caliber Conversion

Check the chart for what your machine needs, then pick the conversion kit for your cartridge.

Conversion Kits1

CP2000 | Caliber Conversion Kit$205.00

Still Need A Hand?

Dillon's support team works on these machines every day. Send us the details and we'll get you running.

800-223-4570

Contact SupportAll Machine Resources

Replacement Parts

Find Your Part

Every exploded diagram from the manual, in page order. Open an assembly to see the diagram and every part on it, then click the part to order it.

Casefeed Mount Assembly Manual p. 415 parts
Machine Parts | CP2000 | Casefeed Mount Assy | Manual Page 41

Open the full-size diagram View this assembly

Case Insert Assembly Manual p. 443 parts
Machine Parts | CP2000 | Case Insert Assy | Manual Page 44

Open the full-size diagram View this assembly

Toolhead / Shellplate Assembly Manual p. 457 parts
Toolhead | CP2000

Open the full-size diagram View this assembly

Toolhead Assembly Manual p. 464 parts
CP2000 Toolhead Assembly — manual page 46 parts diagram

Open the full-size diagram View this assembly

Shellplate Index Assembly Manual p. 485 parts
Machine Parts | CP2000 | Shellplate Index Assy | Manual Page 48

Open the full-size diagram View this assembly

Primer Pocket Swage Assembly Manual p. 494 parts
Machine Parts | CP2000 | Primer Pocket Swage Assy | Manual Page 49

Open the full-size diagram View this assembly

Lower Assembly Eccentric Drive Manual p. 507 parts
Lower Assembly Eccentric Drive — parts diagram

Open the full-size diagram View this assembly

Lower Bearing Assembly Manual p. 512 parts
CP2000 Lower Bearing Assembly — manual page 51 parts diagram

Open the full-size diagram View this assembly

Operating Handle Assembly 3 parts
Machine Parts | CP2000 | Operating Handle Assy | Manual Page 47

Open the full-size diagram View this assembly

Cannot find a part on a diagram? Call Dillon on 800-223-4570 with the machine and the item number from the diagram and we will identify it for you.

Resource CenterCP2000 Video Library 17 Videos

Set It Up. Keep It Running.

Lockring

Know Before You Buy

CP2000 Case Processing Machine

Questions, Answered.

What does the CP2000 do?

The CP2000 is a dedicated case processing machine, not a reloader. It is designed to complement the RL1100 and Super 1050 by prepping brass at higher speed, with greater versatility, and at a much lower cost than dedicating a reloading machine to the job.

How many cases per hour will the CP2000 process?

Up to 2,000 cases per hour, in both rifle and pistol calibers.

Does the CP2000 swage primer pockets?

Yes. A built-in primer pocket swager is standard, and the machine ships with both large and small primer swager kits. The swage rod tip is user-replaceable.

Is a case feeder included with the CP2000?

Yes. A variable-speed electric casefeeder with 0-8 RPM speed control is included, running on universal voltage (110/220V, 50/60 Hz).

Can I automate the CP2000?

Yes. The CP2000 is compatible with the Dillon Automation DA3000 Auto Drive, and fitting one does not void the factory warranty.

What warranty does the CP2000 come with?

The CP2000 comes with a two-year limited warranty against manufacturing defects.

Specs

The Base CP2000 Includes

  • Built-in primer pocket swager
  • Electric casefeeder with variable speed control (0-8 RPM)
  • Standard toolhead
  • Auto-indexing shellplate
  • Large and small primer swager kit

General Information

Designed to complement the RL1100 and Super 1050 reloaders, the CP2000 offers higher speed, greater versatility and added case processing capability - all at a much lower cost than dedicating a reloading machine to prep brass.

The CP2000 is a dedicated case preparation machine rather than a full reloading machine. It is intended to be used alongside a reloader to maximize efficiency when processing brass in high volumes, and will process up to 2,000 cases per hour.

Key Features

  • Seven threaded stations for flexibility
  • Eccentric roller bearing drive system for smoother operation
  • Processes up to 2,000 cases per hour
  • Handles both rifle and pistol cartridges
  • Upgraded primer pocket swager with user-replaceable swage rod tip
  • Reinforced toolhead bolt and washer
  • Improved shellplate indexing system
  • Variable-speed electric casefeeder, universal voltage (110/220V, 50/60 Hz)
  • Compatible with the DA3000 Auto Drive without voiding the factory warranty
  • Two-year limited warranty against manufacturing defects

Ordering Notes

Caliber conversion kits and casefeed plates are sold separately. The standard toolhead is included; additional or specialized toolheads are available for purchase.

Technical Features

  • 7-station case processing machine
  • Processes up to 2,000 cases per hour
  • Built-in primer pocket swager (large and small)
  • Variable-speed electric casefeeder included (0-8 RPM)
  • Auto-indexing shellplate
  • Eccentric roller bearing drive system
  • Handles rifle and pistol cartridges
  • DA3000 Auto Drive compatible
  • Two-year limited warranty
