RL550Resources

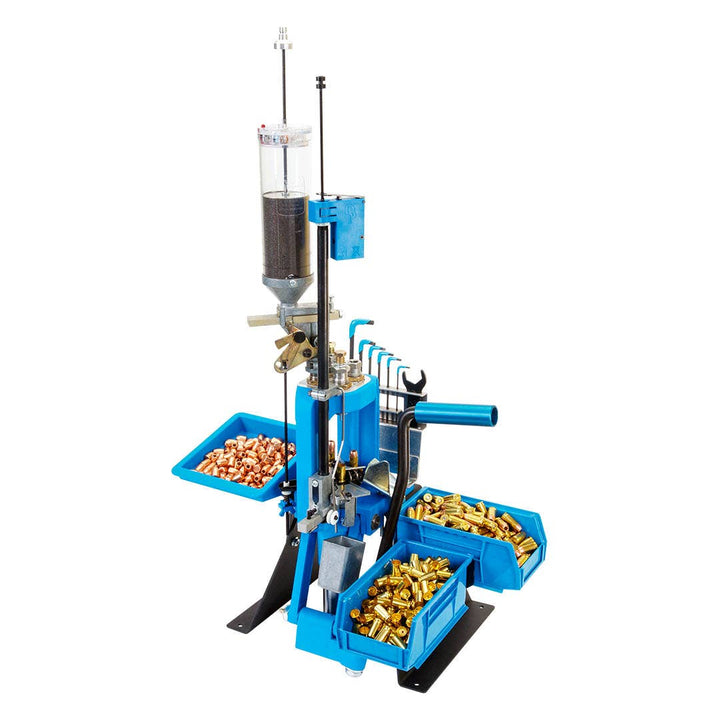

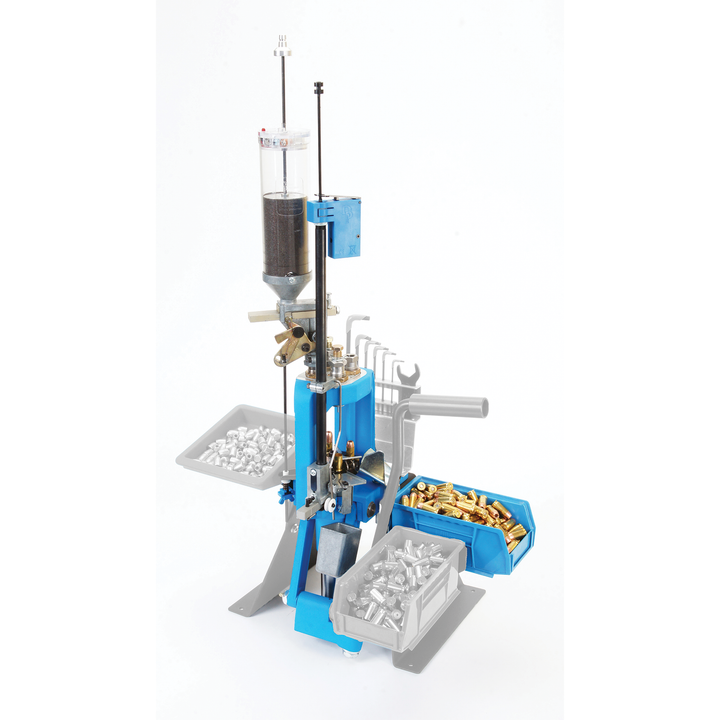

The Base RL550 Includes

• Powder Measure with large and small powder bars (small installed)
• One prime system with large and small priming parts (large installed)
• One large and one small pickup tube
• Low Primer Alarm
• Four Station Toolhead
• Powder Die
• Loaded cartridge catch bin
• Set of allen wrenches
• Manual

General Information

The RL550 has a manually indexed shellplate, making it easier to master the various steps of reloading. Manual indexing also gives the operator greater control over each individual step in the loading process. Caliber changes are simple and require fewer parts than other machines, which makes it less expensive to convert to another cartridge.

Reloading with the RL550 is Easy as 1-2-3!

Most shooters realize that reloading is the most economical way to enjoy their sport, but many shooters are unaware of just how simple it is to reload. In fact, Dillon's RL550 is the easiest progressive loader in the world to learn to reload with. How can we make that statement? Simple. Since all of the reloading steps are performed with a stroke of the handle, there is less to remember (or forget) than with an old-fashioned single-station press. Skeptical? Just watch the video in the video tab to see how easy it really is.

No Adjustments

Of all the steps in reloading, the adjustment of the reloading dies is the most critical. With the RL550's removable toolhead, your dies will stay in perfect adjustment. There's no need to screw them in and out, even when changing calibers! The RL550 functions perfectly with any standard 7/8" x 14 die set. There's less to go wrong, less to remember.

It's Your Choice

You can struggle along with a slow, cumbersome single-station press with all its adjustments, changes and secrets, or make your life easier with a progressive RL550. If you're thinking about a competitor's reloader, before you put your money down, consider this: Dillon will let you try the RL550 for 30 days.

If it doesn't live up to our claims or your expectations, return it. We'll refund your money. Our warranty is simple: if it breaks, we'll fix it FREE for as long as you own it.

Rifle and Pistol

The RL550 will produce match-quality ammo for over 160 different rifle and pistol calibers.

Ordering Notes

The RL550 can be ordered with or without a conversion kit. The machine does not include dies (order separately from the configuration menu).

All options can be selected from the product configuration menu, or from the options and add-ons section below.

If a * is contained in the caliber conversion listing, it means you need the XL Powder Die #21253, orderable in the configuration menu.

You Will Also Need (At Minimum)

• Caliber Conversion Kit (not included with base unit)
• Die Set (not included with the base unit)
• Powder Scale
• Reloading Handbook
• Caliper
• Primer Flip Tray
• Case Lube (for bottleneck cartridges)

We Also Suggest That You Purchase

• Extra primer pick-up tubes, if loading more than 100-200 rounds per session
• The RF100 primer filler if you are loading more than 500 rounds per session
• A machine cover to keep the unit dust free
• A die set for your caliber
• A caliber conversion kit
• If you have the optional electric casefeeder, you may need a different casefeed plate

If You Want To Leave Your Dies Preset, You'll Need

• Toolhead #13909
• Powder Die #20064
• OR the Quick Change Kit #22058

Quick change kits include a powder measure, powder die, toolhead, and a toolhead stand, allowing you to leave your dies and powder charge set up and dedicated to a specific cartridge for faster, easier caliber changes.
