BL550Resources

The Base BL550 Includes

• The base machine
• One written instruction manual

General Information

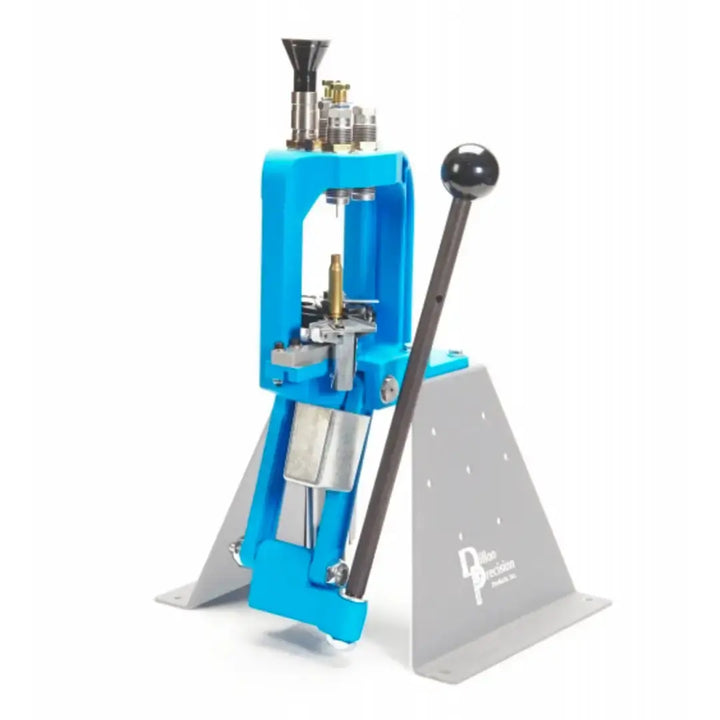

The Dillon BL550 is the basic version of the RL550C reloading machine. Instead of the automatic powder measure and priming systems included with the RL550C, the BL550 offers a funnel system so weighed powder charges may be poured into the case without removing it from the shellplate.

The BL550 accommodates the widest variety of cartridges of any Dillon machine, from .32 ACP up through .338 Lapua, .416 Rigby and .460 Weatherby, and will produce match-quality ammunition for over 160 different rifle and pistol calibers.

A Simple Four-Step Process

• Station 1: deprime and resize
• Station 2: pour the weighed powder charge through the funnel
• Station 3: seat the bullet
• Station 4: crimp

All four operations happen without changing dies between steps.

No Adjustments

With the BL550's removable toolhead, your dies stay in perfect adjustment. There's no need to screw them in and out, even when changing calibers. The BL550 functions with any standard 7/8" x 14 die set.

Warranty

Dillon offers a 30-day trial period, and if the machine breaks we will fix it free for as long as you own it.

Ordering Notes

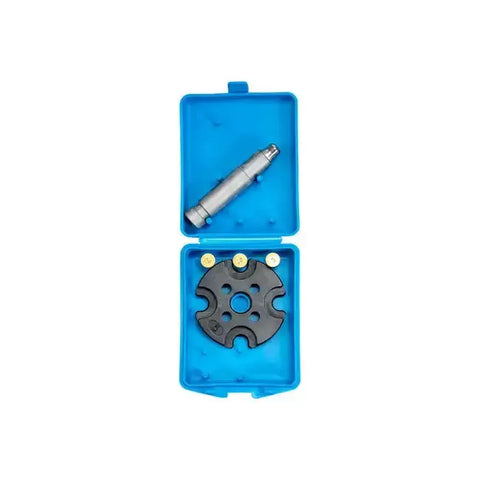

The BL550 uses RL550C caliber conversion kits. You must order a caliber conversion kit separately. If a * appears in the caliber conversion listing, you will also need the XL Powder Die #21253.

You Will Also Need (At Minimum)

• Caliber Conversion Kit (not included with base unit)
• Die Set (not included with base unit)
• Powder Scale
• Reloading Handbook
• Caliper
• Primer Flip Tray
• Case Lube (for bottleneck cartridges)

We Also Suggest That You Purchase

• A machine cover to keep the unit dust free
