Support & Resources

Super 1050Resources

Manuals, setup and maintenance videos, caliber conversion charts and the parts that fit this machine, all in one place.

  • 28 Videos
  • 1 Documents
  • 1 Conversion Kits
Manuals & GuidesVideo LibraryCaliber ConversionParts & Accessories

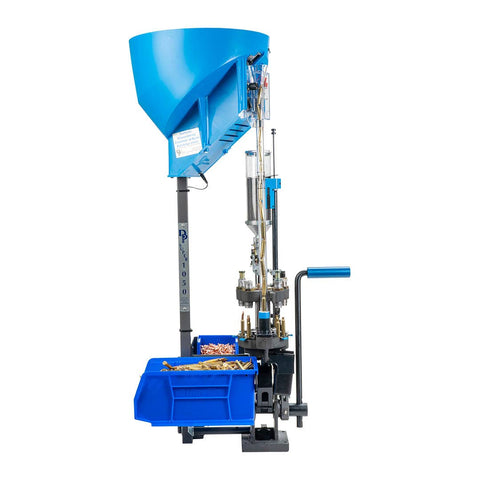

View The Super 1050

Super 1050 | Progressive Reloading Machine | 9mm

Manuals & Guides

Download the owner's manual, quick start guide and reference sheets for this machine.

Owner's Manual1

Caliber Conversion

Check the chart for what your machine needs, then pick the conversion kit for your cartridge.

Conversion Kits1

RL1100/Super 1050 | Caliber Conversion KitFrom $225.00

Still Need A Hand?

Dillon's support team works on these machines every day. Send us the details and we'll get you running.

800-223-4570

Contact SupportAll Machine Resources

Replacement Parts

Find Your Part

Every exploded diagram from the manual, in page order. Open an assembly to see the diagram and every part on it, then click the part to order it.

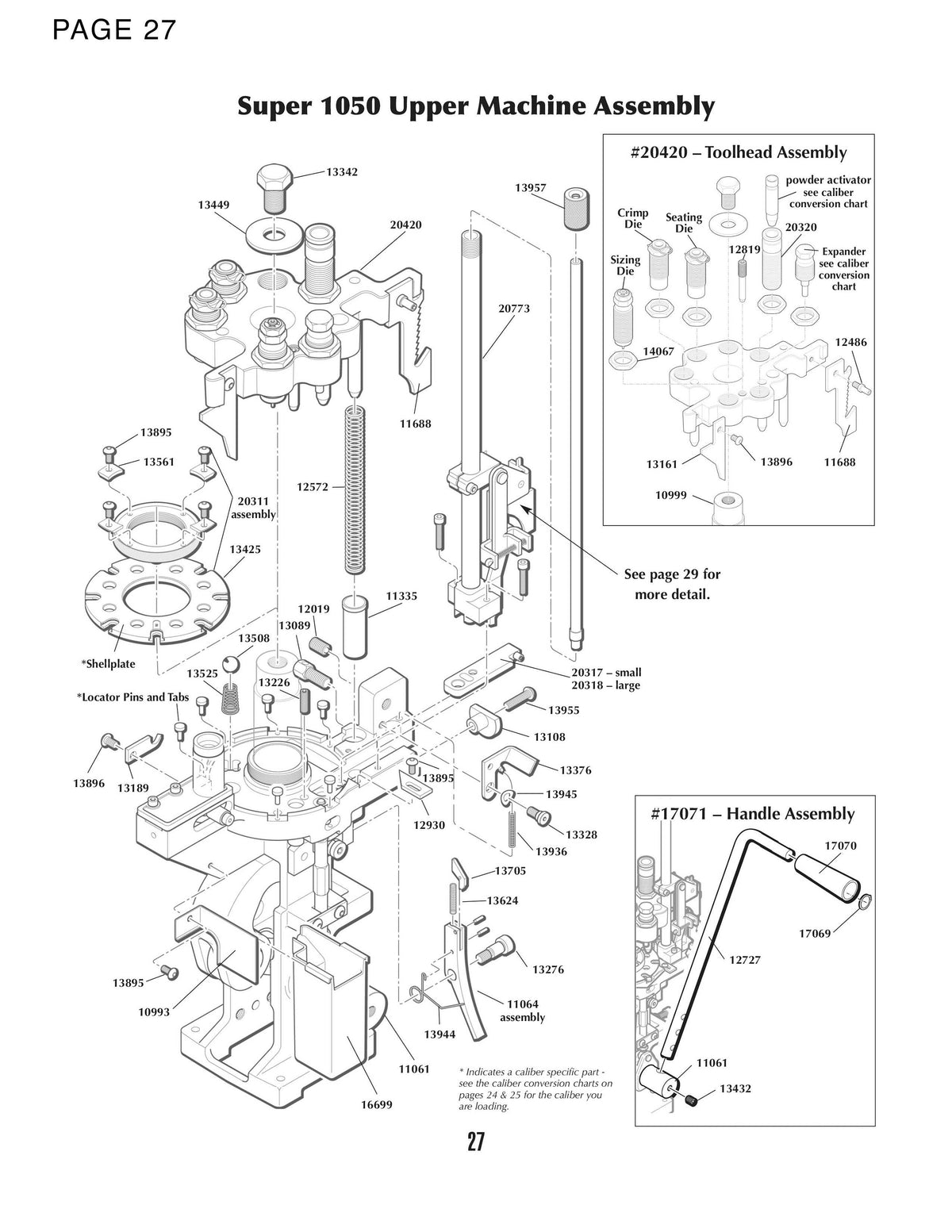

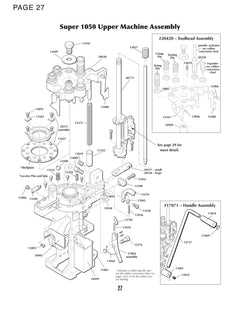

Upper Machine Assembly Manual p. 2713 parts
Machine Parts | Toolhead Assembly | RL1050

Open the full-size diagram View this assembly

Lower Machine Assembly Manual p. 2812 parts
Super 1050 Lower Machine Assembly — manual page 28 parts diagram

Open the full-size diagram View this assembly

Primer System Assembly Manual p. 2911 parts
Super 1050 Primer System Assy — manual page 29 parts diagram

Open the full-size diagram View this assembly

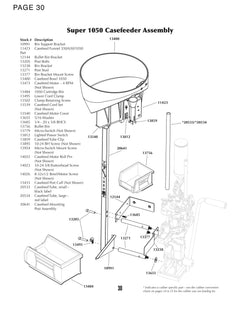

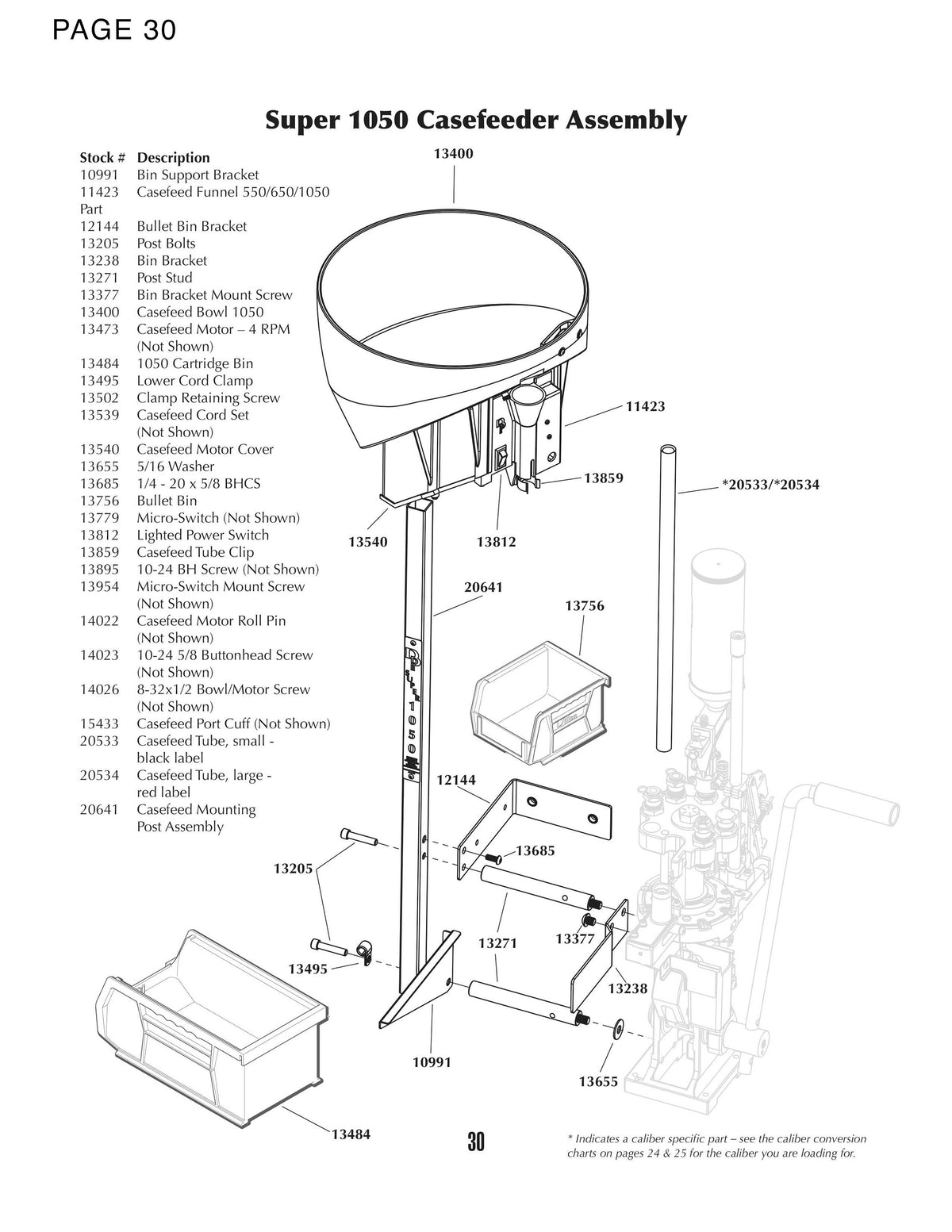

Case Feeder Assembly Manual p. 307 parts
Super 1050 Case Feeder Assembly — manual page 30 parts diagram

Open the full-size diagram View this assembly

Cannot find a part on a diagram? Call Dillon on 800-223-4570 with the machine and the item number from the diagram and we will identify it for you.

Resource CenterSuper 1050 Video Library 28 Videos

Set It Up. Keep It Running.

Know Before You Buy

Super 1050 | Progressive Reloading Machine

Questions, Answered.

How many rounds per hour can the Super 1050 load?

Up to 1,000-1,200 rounds per hour. Your actual rate depends on the cartridge and your experience on the press.

What calibers will the Super 1050 load?

The Super 1050 loads cartridges from .32 ACP through .30-06, and is offered in 42 caliber configurations.

Each additional caliber needs a Super 1050 caliber conversion kit and die set.

Does the Super 1050 swage primer pockets?

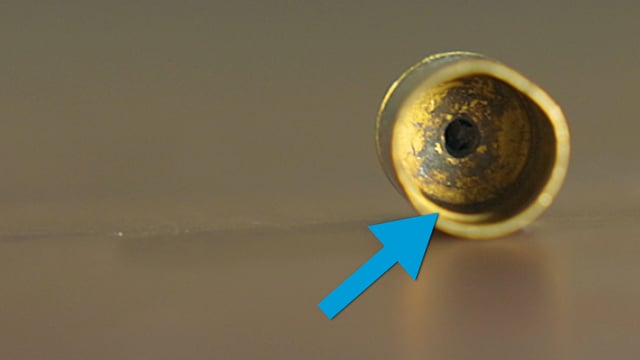

Yes. The Super 1050 has a built-in, in-line primer pocket swager, so crimped military brass can be processed on the machine without a separate swaging step.

Is a case feeder included with the Super 1050?

Yes. Every Super 1050 ships with a variable-speed electric casefeeder. The motor uses a universal power supply compatible with 110V or 220V and both 50/60 Hz - simply swap the plug for your region.

How long does a Super 1050 take to ship?

Super 1050 machines are built when ordered and typically ship within 2-3 business days. A tracking link is emailed when the order ships.

What warranty does the Super 1050 come with?

The Super 1050 carries a one-year limited warranty against manufacturing defects, plus a 30-day risk-free trial.

Specs

The Base Super 1050 Includes

  • 8-station reloading machine with auto-indexing shellplate
  • Variable-speed electric casefeeder
  • Case feed plate
  • Die set in the selected caliber
  • Caliber conversion kit
  • Built-in primer pocket swager
  • Automatic powder measure
  • Automatic priming system
  • Low-primer alarm
  • Roller handle

General Information

The Super 1050 is one of the most advanced progressive reloading machines in the Dillon lineup, engineered for shooters and small-scale production that require capacity beyond smaller progressive models. It accommodates common cartridges from .32 ACP up through .30-06 and ships with a variable-speed electric casefeeder to accommodate any caliber the Super 1050 can reload. It reloads at a rate of up to 1,000-1,200 rounds per hour.

The motor uses a universal power supply compatible with 110V or 220V and both 50/60 Hz; simply swap the plug for your region. Super 1050 machines are built when ordered and typically ship within 2-3 business days; a tracking link is emailed when the order ships.

Key Features

  • Supports .32 ACP through .30-06 (wide rifle and pistol support)
  • Variable-speed electric casefeeder included

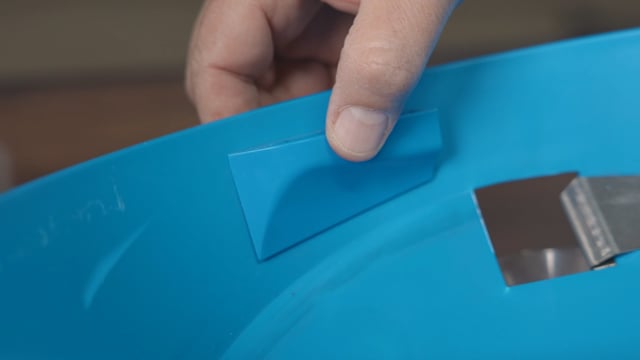

  • Casefeed bowl with adjustable window cuff and case deflector
  • In-line primer pocket swaging
  • Auto-indexing shellplate for consistent indexing
  • Automatic powder measure and priming system
  • Low-primer alarm; one die set included in the selected caliber
  • Available in 42 caliber configurations
  • Highly configurable: caliber conversions, Quick Change Toolheads, and a Bullet Feeder

Warranty and Trial

The Super 1050 carries a one-year limited warranty against manufacturing defects and a 30-day risk-free trial.

You Will Also Need (At Minimum)

  • Powder Scale
  • Reloading Handbook
  • Calipers
  • Primer Flip Tray
  • Case Lube (for bottleneck cartridges)

We Also Suggest That You Purchase

  • Extra primer pick-up tubes, if loading more than 100-200 rounds per session
  • RF100 Electric Primer Filler, well worth considering if you are loading more than 500 rounds per session
  • A machine cover to keep the unit dust free
  • Dillon dies, which are designed for high-speed use

To Change Calibers, You Will Need

  • A Super 1050 caliber conversion kit
  • An additional die set
  • A different casefeed plate for some cartridges - refer to the caliber conversion chart in the manual

Technical Features

  • 8-station, automatic-indexing toolhead
  • Loads 1,000-1,200 rounds per hour
  • Built-in primer pocket swager
  • Variable-speed electric case feeder included
  • Automatic powder measure and priming system
  • Loads .32 ACP through .30-06
  • 42 caliber configurations available
  • 1-year limited warranty and 30-day risk-free trial
