RL1100Resources

The Base RL1100 Includes

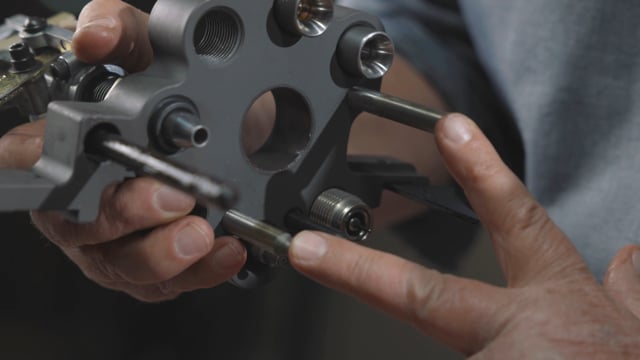

• 8-station toolhead with automatic-indexing shellplate
• Variable-speed electric case feeder
• Case feed plate
• Die set in the selected caliber

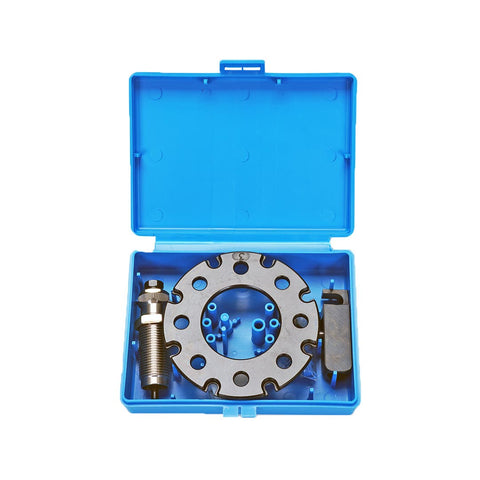

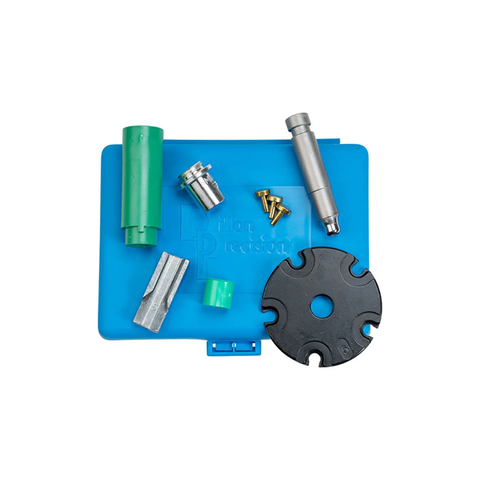

• Caliber conversion kit

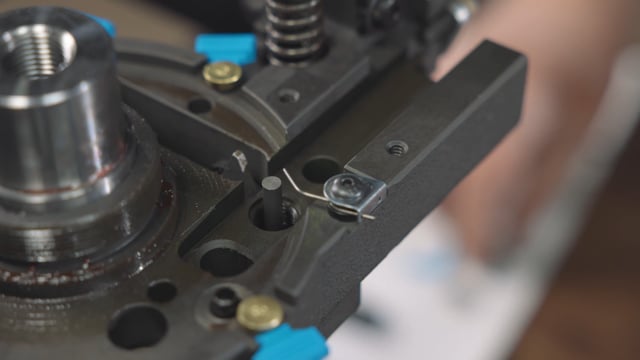

• Built-in primer pocket swager

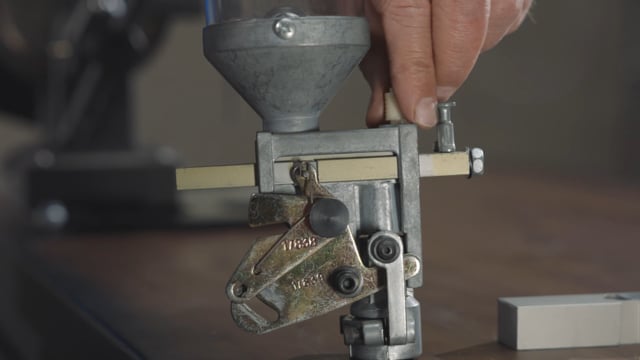

• Automatic powder measure
• Automatic priming system
• Low-primer alarm
• Roller handle
• Manual

General Information

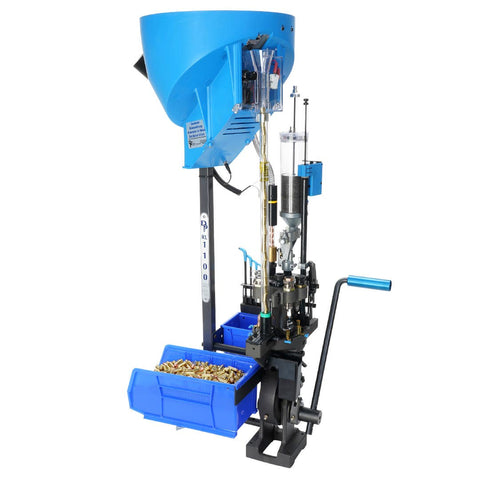

The RL1100 is an 8-station, automatic-indexing progressive machine built for high-volume loading. It loads cartridges from .32 ACP through .308 Winchester, with a maximum cartridge overall length of 2.75 inches, and produces approximately 1,000-1,200 rounds per hour.

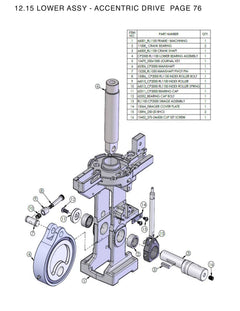

Built for durability and smooth operation, the RL1100 features a roller bearing drive system, a heavier frame for rigidity, and improved shellplate indexing. It has an upgraded primer pocket swager with a user-replaceable swage rod tip, a spring-loaded priming station locator, a reinforced toolhead bolt and washer, and is compatible with 1050 caliber conversions.

For automated high-volume production, pair the RL1100 with the Dillon Automation DA3000 Autodrive.

Key Features

• Supports .32 ACP through .308 Win (max OAL 2.75")
• Variable-speed electric case feeder included

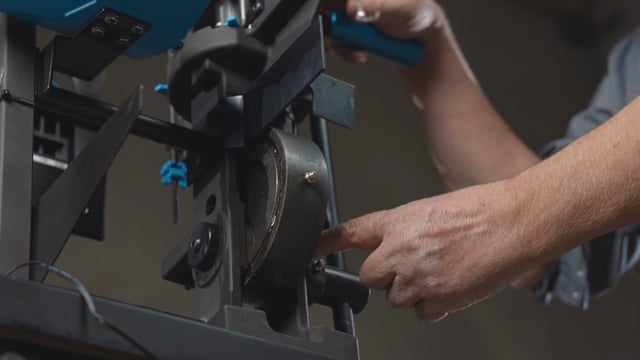

• Durable roller bearing drive for smoother operation
• Heavier, rigid frame for reduced vibration and improved repeatability

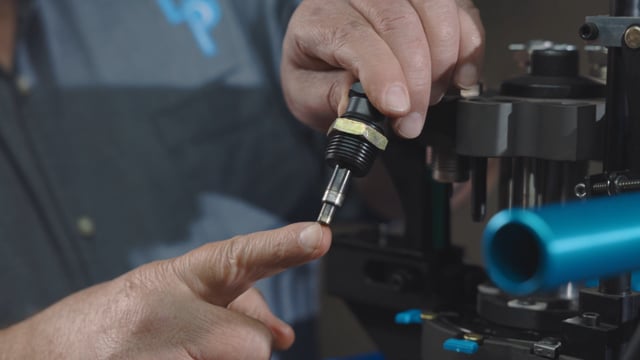

• Upgraded in-line primer pocket swager with user-replaceable swage rod tip

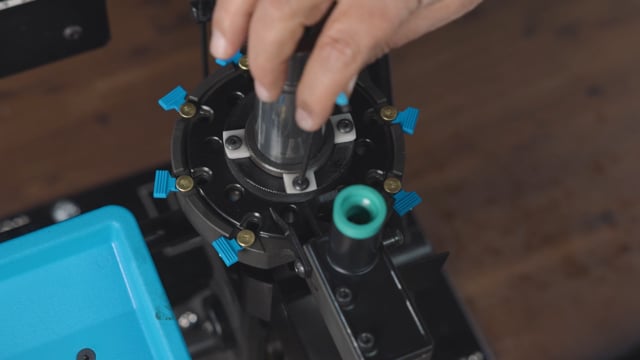

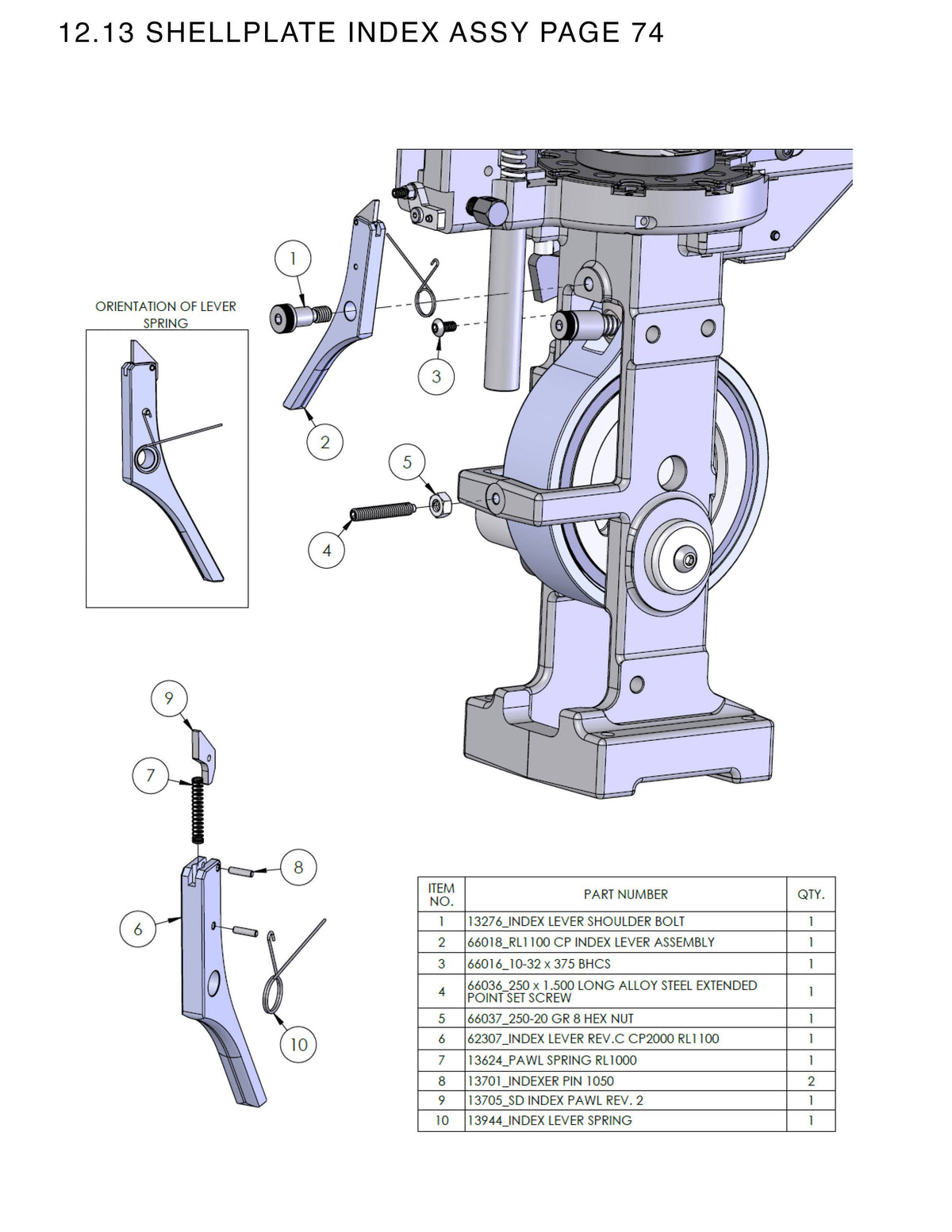

• Auto-indexing shellplate with improved indexing system
• 1050 caliber-conversion compatible
• Two-year limited warranty; 30-day trial guarantee
• Compatible with the Dillon Automation DA3000 Autodrive

Ordering Notes

The RL1100 comes with a conversion kit and die set for the caliber you choose. For additional calibers, order additional conversion kits along with your reloading die(s).

You Will Also Need (At Minimum)

• Powder Scale
• Reloading Handbook
• Caliper
• Primer Flip Tray
• Case Lube (for bottleneck cartridges)

We Also Suggest That You Purchase

• Extra primer pick-up tubes, if loading more than 100-200 rounds per session
• The RF100 primer filler if you are loading more than 500 rounds per session
• A machine cover to keep the unit dust free

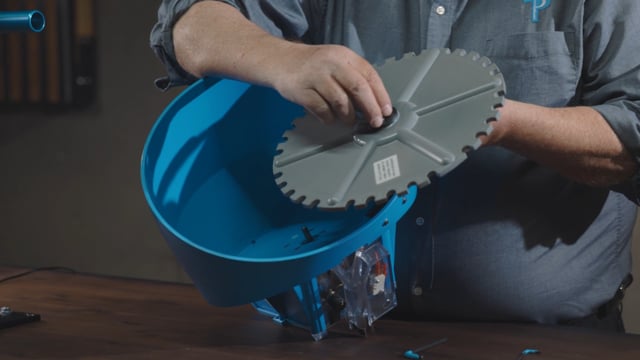

• Additional case feed plates for the casefeeder

If You Want To Leave Your Dies Preset, You'll Need

• Toolhead #66024
• Powder Die #20064
• OR the Quick Change Kit #66215

Quick change kits include a powder measure, powder die, toolhead, and a toolhead stand, allowing you to leave your dies and powder charge set up and dedicated to a specific cartridge for faster, easier caliber changes.
