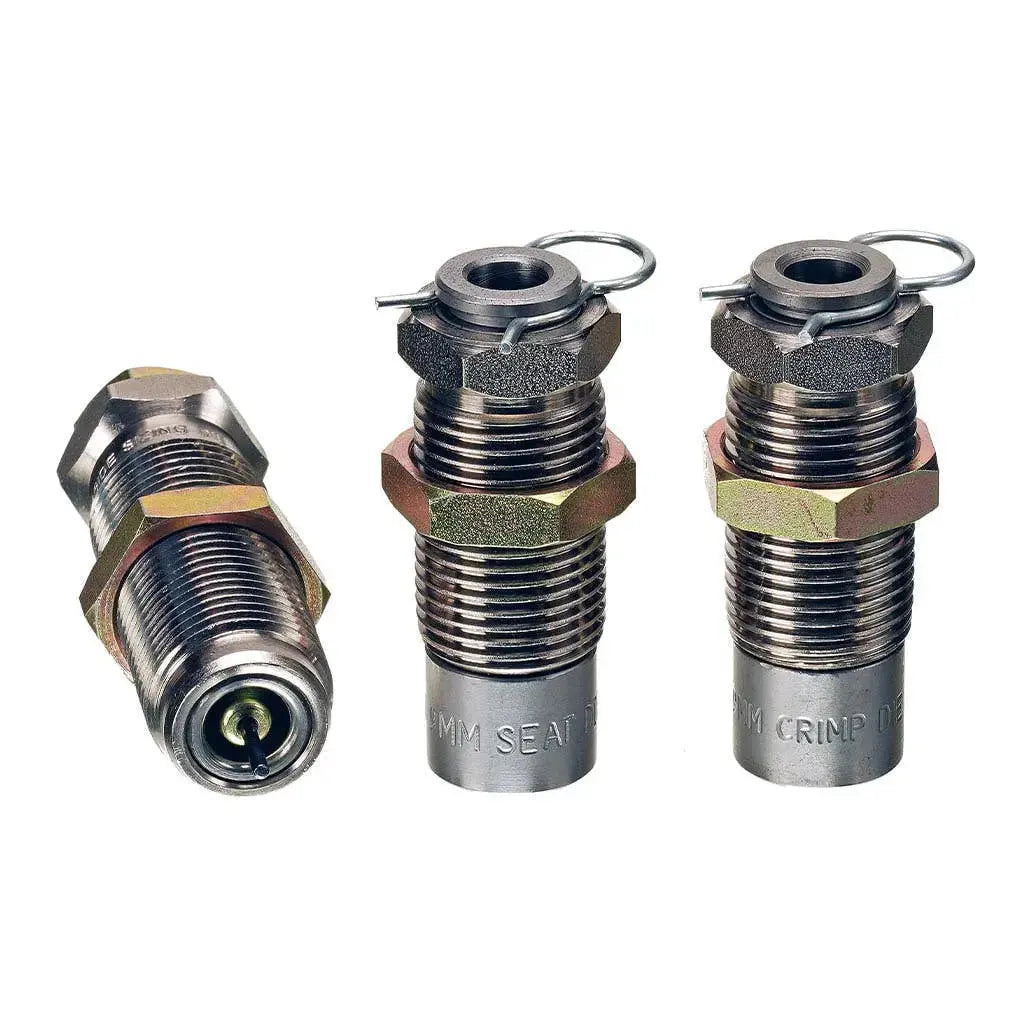

Dillon Carbide Pistol Dies | 3 Die Set

Dillon Dies are engineered to give the very best performance, durablity and reliabilty on your Dillon Reloader.  Hand made in the USA from the highest quality sintered carbide , our dies are hand finished to exact standards.   All Dillon Pistol Die sets include our size / depriming die,  seating die and a separate crimp die (taper crimp for auto cartridges, accu-crimp for revolver cartridges).

NOTE: These dies are NOT compatible with the Square Deal B. If you have a Square Deal B, order dies HERE

Please be aware that the Dillon pistol dies are heavily backordered.  Please check the Backorder Status  tab below for approximate lead times.

From $125.00

To $235.00

In stock
SKU
S000089
Product Configuration

* Required Fields

Dillon Carbide Pistol Dies | 3 Die Set
Dillon Carbide Pistol Dies | 3 Die Set

In stock

$125.00

Summary

    Sizing/Depriming Die

    Our sizing/depriming dies feature a unique "floating decapping assembly" with a snap spring that throws the spent primer off the pin and eliminates the problem of primer "draw back" that often occurs when decapping military brass. The primary feature of Dillon's size die design the long, tapered carbide ring with a radiused opening, remains unchanged.

    The radiused opening, and its importance to progressive reloading, is one of the reasons why our seat and crimp dies are better. We found a way of manufacturing these dies that has enabled us to make the lead-in radius even bigger! The bigger radius makes progressive loading with our equipment even smoother but that's still only a part of the story.

    Bullet Seating Die

    Our new quick-disassembly seat die allows the user to disassemble and clean the seat die without losing adjustment. In this manner, bullet lube and shavings can be quickly removed from the die, thereby guaranteeing a constant seating depth. We've incorporated a "flip-flop" seating stem and a clip that enables you to remove the die insert and change the seating stem from round nose to semi-wadcutter without unscrewing a seating stem out of the die body. We've always included both types of seating stems, but the new double-ended design makes it a simple matter to remove a pin, reverse the seating stem, make any minor seating depth adjustments that may be necessary and go on loading in a fraction of the time it used to take.

    Crimp Die

    We've made it easy for you to remove the die insert for cleaning without having to change the critical crimp adjustment. Once your crimp die is set for the proper amount of crimp, you'll never have to change it. This is especially good news for all of you who load lead bullets! Before, you had to unscrew the die from the toolhead and disassemble the die in order to remove any bullet lube or lead residue. Then, you had to start from square one to re-adjust the crimp. Those days are over. All you have to do now is pop a clip and the die insert drops into your hand for cleaning.

    LEAD TIMES FOR COMMON BACKORDERED PRODUCTS

    STOCK & ORDERING NOTE :

    Due to unprecedented demand, we are not accepting backorders on out of stock magazines, bullets, brass and some other items.    Our future cost and delivery are uncertain at this point.  If you see an item that displays "Out of Stock" that means we hope to get it back in stock but do not allow backorders.  Items that say "backorder" means the item IS expected back in stock and you may backorder it.



    IMPORTANT NOTICE ABOUT DIES:

    Dillon Precision has added a second domestic carbide supplier. Their job is to make large quantities of a single caliber handgun carbide insert. They are finishing 9X19MM. After they finish those, the next two they will make are 44 Magnum and 45 Colt. Our primary carbide supplier is currently concentrating on 223 Remington.  The dates below are our current estimate for delivery, based on recent delivery history and knowledge of what we expect to be delivered and when we expect to receive it.



    Reloading Machines:

    • Square Deal B - Refer to caliber lead times
    • RL550C - In Stock
    • XL750 - In Stock
    • Super 1050 - Refer to caliber lead times
    • Super 1050 (no dies) - In Stock
    • RL1100 - Refer to caliber lead times
    • RL1100 (no dies) - In Stock
    • CP2000 - In Stock
    • SL900 - In Stock
    • Essentials Packages - 60 weeks (dies)



    Carbide Die estimated Delivery Dates
    As of 02/19/2024, these are the estimated weeks before we begin shipping.

    • 9mm 6-8+ week
    • .45 ACP 18-20+ weeks
    • .38 / .357 24-30+ weeks
    • .38 Super 6-8+ weeks
    • 40 S&W/10mm In Stock
    • 32 S&W Long/32 H&R 44+ weeks
    • .380 ACP In Stock
    • .357 SIG 48+ weeks
    • 41 Magnum 48+ weeks
    • .44 SPL / Mag 10-12+ weeks
    • 45 Colt 16-20+ weeks
    • .223 size 2-4+ weeks
    • .300 Blackout 16-20+ weeks
    • .308 Winchester In Stock
    • 30-06 24-28+ weeks
    • 50 BMG 48+ weeks
